All Products

The complete
radiator range.

Engineered for diverse transformer requirements, our radiators deliver consistent performance across power, distribution, industrial and renewable-energy applications.

← Back to Products Overview
01 / 04

Header Type Radiators

Reliable cooling for maximum transformer performance.

Header Type Radiators are designed to provide efficient heat dissipation and reliable cooling for power and distribution transformers — the workhorse of the range, available in flanged and non-flanged options, every unit pressure-tested leak-proof.

Superior heat dissipation
Heavy-duty welded construction
100% leak-proof pressure tested
Corrosion-resistant finish
Flanged & non-flanged options
Power TransformersDistribution TransformersIndustrial TransformersInverter Duty Transformer
Request a Quote →
Triveni Header Type (straight) transformer radiator with centred connections, as delivered
01 · Header TypeAs delivered
Technical Specification
StandardsIEEMA 9 · DIN 42559 · BS EN 50216-6
Centre Distance1,200 – 3,500 mm
Elements1 – 38
Width520 mm
Pitch40 / 45 / 50 mm
Pipe Size80 NB / 100 NB
Sheet Thickness1.0 mm / 1.2 mm
ApplicationPGCIL-approved, up to 765 kV class
02 / 04

Offset Radiators

Compact design for space-constrained installations.

Offset Radiators are specially designed for installations where standard radiator mounting is not feasible. Their compact configuration allows efficient cooling while optimising the available installation space.

Space-saving design
Flexible mounting options
Custom offset dimensions
Excellent heat dissipation
Power TransformersDistribution TransformersIndustrial TransformersInverter Duty Transformer
Request a Quote →
Triveni Offset transformer radiator with off-centre connections, as delivered
02 · OffsetAs delivered
Technical Specification
StandardsIEEMA 9 · DIN 42559 · BS EN 50216-6
Centre Distance1,200 – 3,500 mm
Elements1 – 38
Width520 mm
Pitch40 / 45 / 50 / 55 mm
Pipe Size80 NB
Sheet Thickness1.0 mm / 1.2 mm
ApplicationPGCIL-approved, up to 765 kV class
03 / 04

Swan Neck Radiators

Designed for complex transformer configurations.

Swan Neck Radiators feature curved inlet and outlet connections, making them ideal for transformers with unique mounting arrangements and special piping layouts.

Curved tube design
Custom bend angles
Suitable for restricted spaces
High mechanical strength
Power TransformersIndustrial Transformers
Request a Quote →

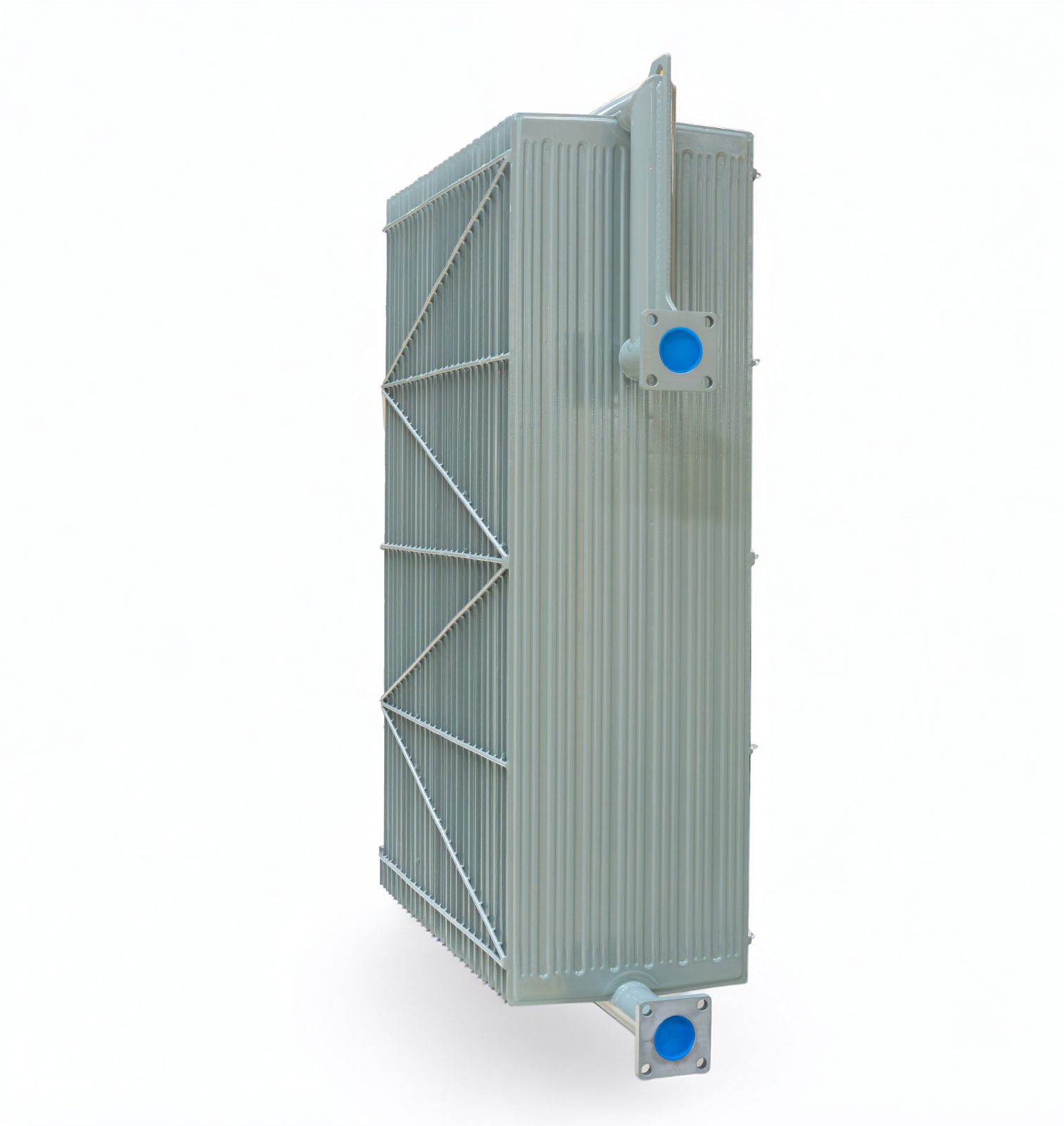

Swan neck radiator, as delivered
03 · Swan NeckAs delivered
Technical Specification
StandardsIEEMA 9 · DIN 42559 · BS EN 50216-6
Centre Distance1,200 – 3,500 mm
Elements1 – 38
Width520 mm
Pitch40 / 45 / 50 mm
Pipe Size80 NB / 100 NB
Sheet Thickness1.0 mm / 1.2 mm
ApplicationPGCIL-approved, up to 765 kV class
04 / 04

Goose Neck Radiators

Custom engineered for flexible transformer connections.

Goose Neck Radiators are designed for applications requiring special inlet and outlet orientations, while maintaining superior cooling efficiency and structural strength.

Custom connection geometry
Heavy-duty construction
High cooling efficiency
Leak-proof fabrication
Request a Quote →
Goose neck radiator, as delivered
04 · Goose NeckAs delivered
Technical Specification
StandardsIEEMA 9 · DIN 42559 · BS EN 50216-6
Centre Distance1,200 – 3,500 mm
Elements1 – 38
Width520 mm
Pitch40 / 45 / 50 mm
Pipe Size80 NB / 100 NB
Sheet Thickness1.0 mm / 1.2 mm
ApplicationPGCIL-approved, up to 765 kV class
01Header Type 02Offset 03Swan Neck 04Goose Neck
